The Single Mode Fused WDM based on Two Parallel Fiber fused
bi-conical taper technology. It has two windows. The devices are
designed and manufactured to meet Telcordia GR-1209-CORE
requirements and RoHS compliant.
Applications: Features:
SONET Low excess loss
SDH High reliability
LAN
EPON
CATV
Specifications (T=23°C)
Parameter | Unit | Value | |||||||||
Central Wavelength | nm | 850/1310 | 980/1550 | 1310/1550 | 1480/1550 | 1310/1490/1550 | C/L Band | 1310/1625 | 1550/1625 | ||
Wavelength | Type 1 | Passband | nm | 850±50 | 980±40 | 1310±40 | 1450~1490 | 1310±40 1490±10 | 1528~1563 | 1310±40 | 1550±40 |
Reflective Band | 1310±50 | 1550±40 | 1550±40 | 1530~1580 | 1530~1580 | 1570~1610 | 1625±10 | 1625±10 | |||
Type 2 | Passband | 1310±50 | 1550±40 | 1550±40 | 1530~1580 | 1530~1580 | 1570~1610 | 1625±10 | 1625±10 | ||
Reflective Band | 850±50 | 980±40 | 1310±40 | 1450~1490 | 1310±40 1490±10 | 1528~1563 | 1310±40 | 1550±40 | |||
Insertion Loss | Pass Channel | dB | ≤0.6 | ||||||||
Reflective Channel | ≤0.4 | ||||||||||
Isolation | Pass Channel | nm | Standard ISO≥30, High ISO≥40 | ||||||||
Reflective Channel | Standard ISO≥13, High ISO≥18 | ||||||||||
Flatness | dB | ≤0.3 | |||||||||
Directivity | dB | ≥50 | |||||||||
Return Loss | dB | ≥45 | |||||||||
PMD | ps | ≤0.10 | |||||||||
PDL | dB | ≤0.10 | |||||||||
Insertion Loss Temperature Sensitivity | dB/°C | ≤0.005 | |||||||||
Wavelength Temperature Shifting | nm/°C | ≤0.002 | |||||||||
Fiber Type | - | 50/125 or 62.5/125 Multimode fiber, SMF-28e Single mode fiber, HI1060 Fiber | |||||||||
Max. Power Handling | mW | ≤500 | |||||||||
Operation Temperature | °C | -10~+70 | |||||||||
Storage Temperature | °C | -40~+85 | |||||||||
Package Dimension | mm | Φ5.5×34 (Φ0.25 fiber), Φ5.5×38(Φ0.9 fiber) | |||||||||
Note: 1. All parameters are for device without connectors.
2. Special specifications can be customized according to customer requirements.

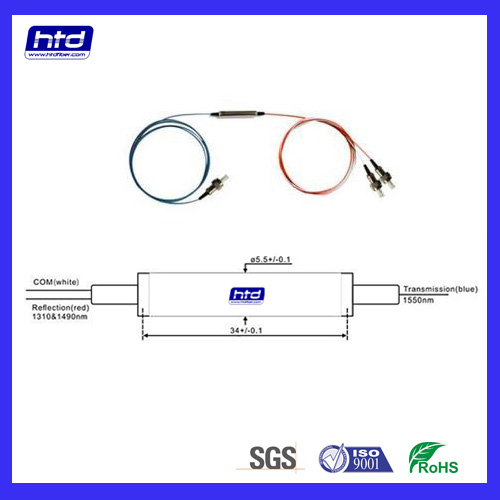

Pictures:
